01

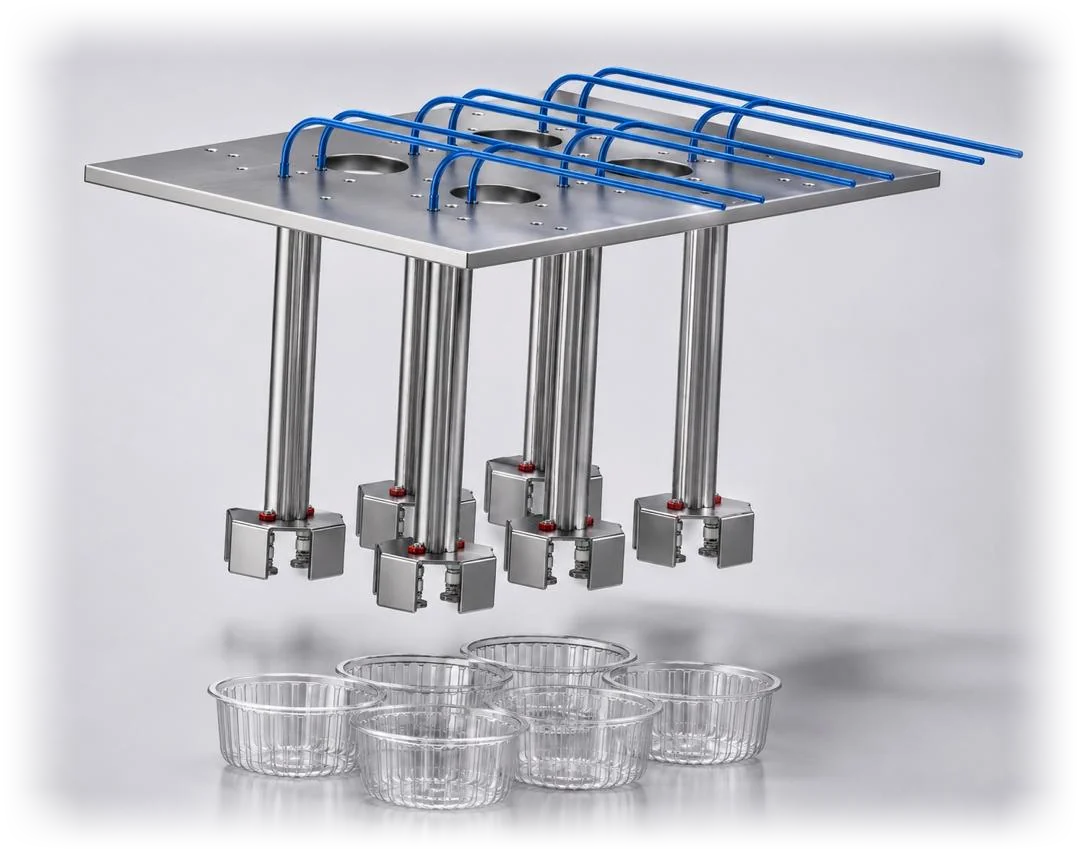

Thermoforming mold
Multi-cavity forming tools cut to the thermoformer already on your floor.
Products
Six mold families, one tool room.
We specialise in designing and developing high-precision molds for complex, high-tech products and demanding production environments.
Mold & die-set
02

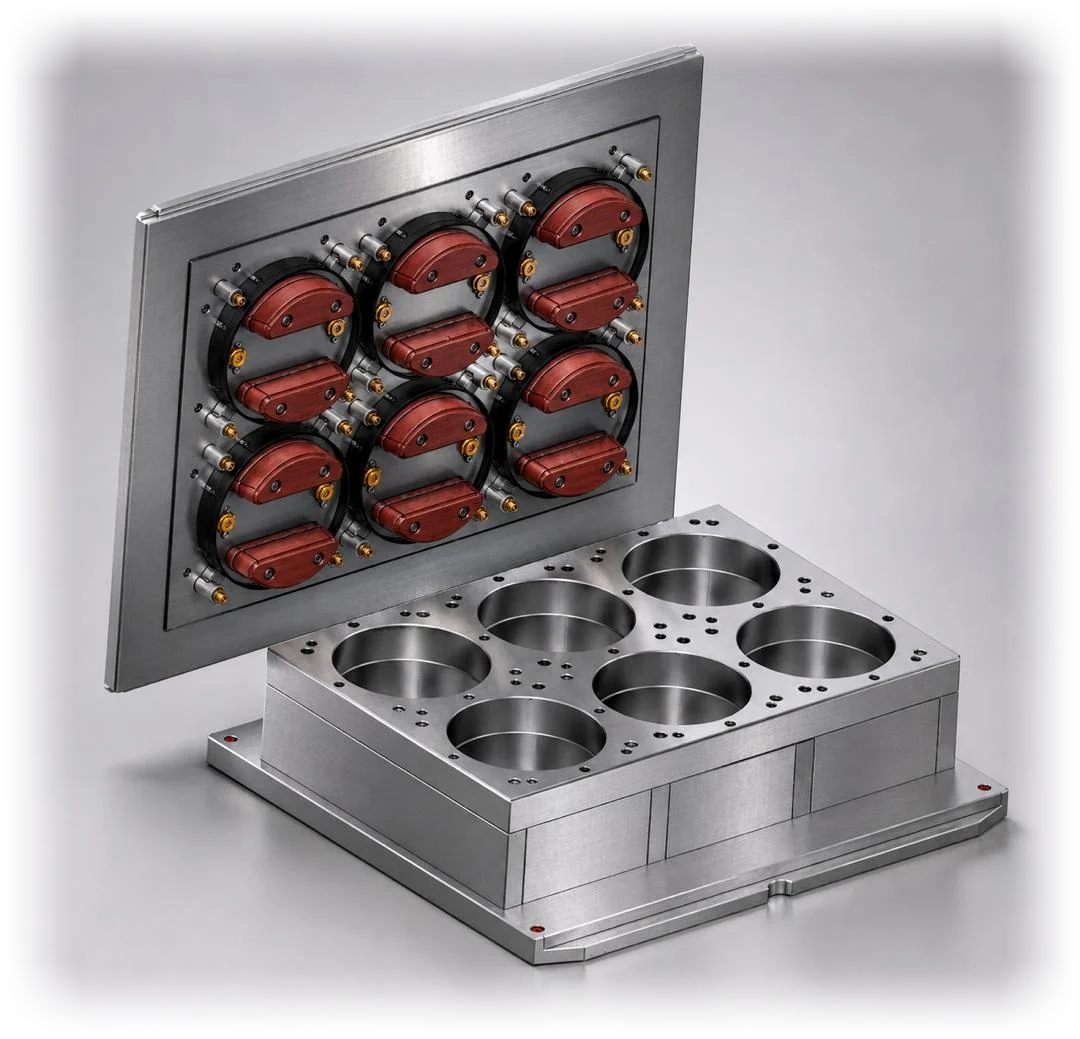

Pressure forming mold
Where the part needs detail the vacuum alone will not pull.
03

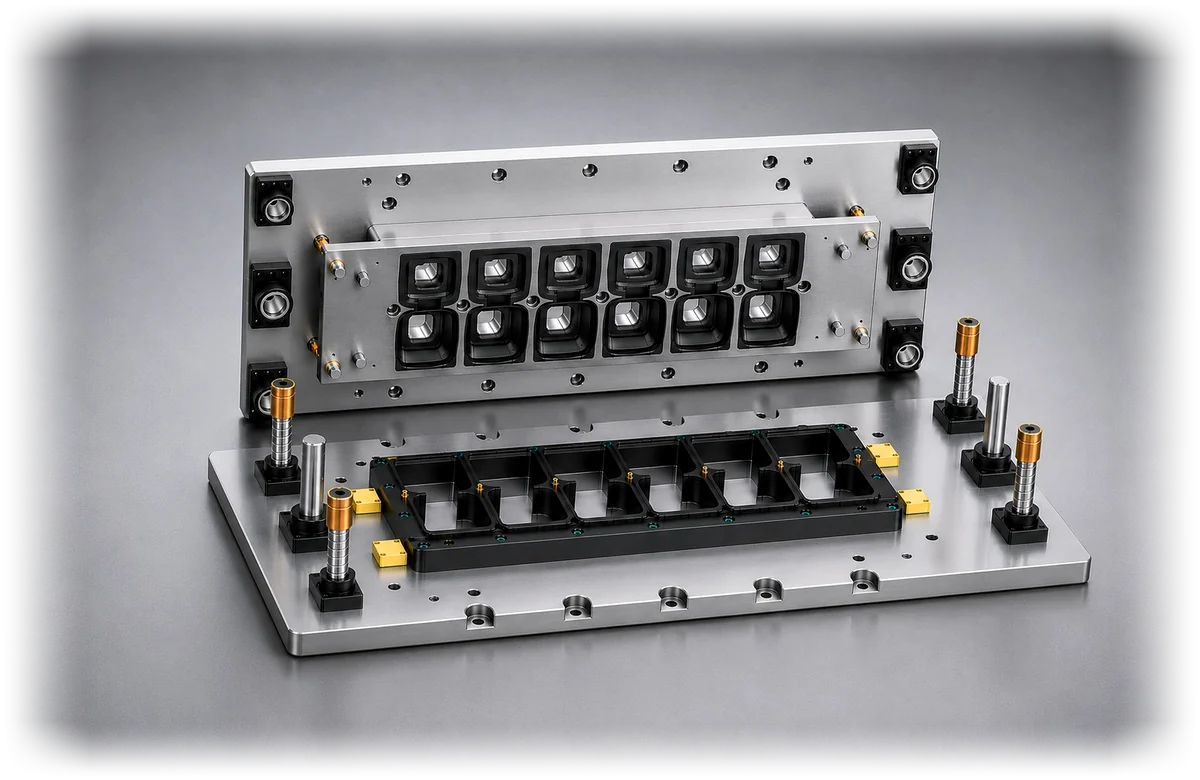

Inline punch & die stamping mold
Three and four station machines, with the middle punch, trimming set and tray stacker matched to the trim.
04

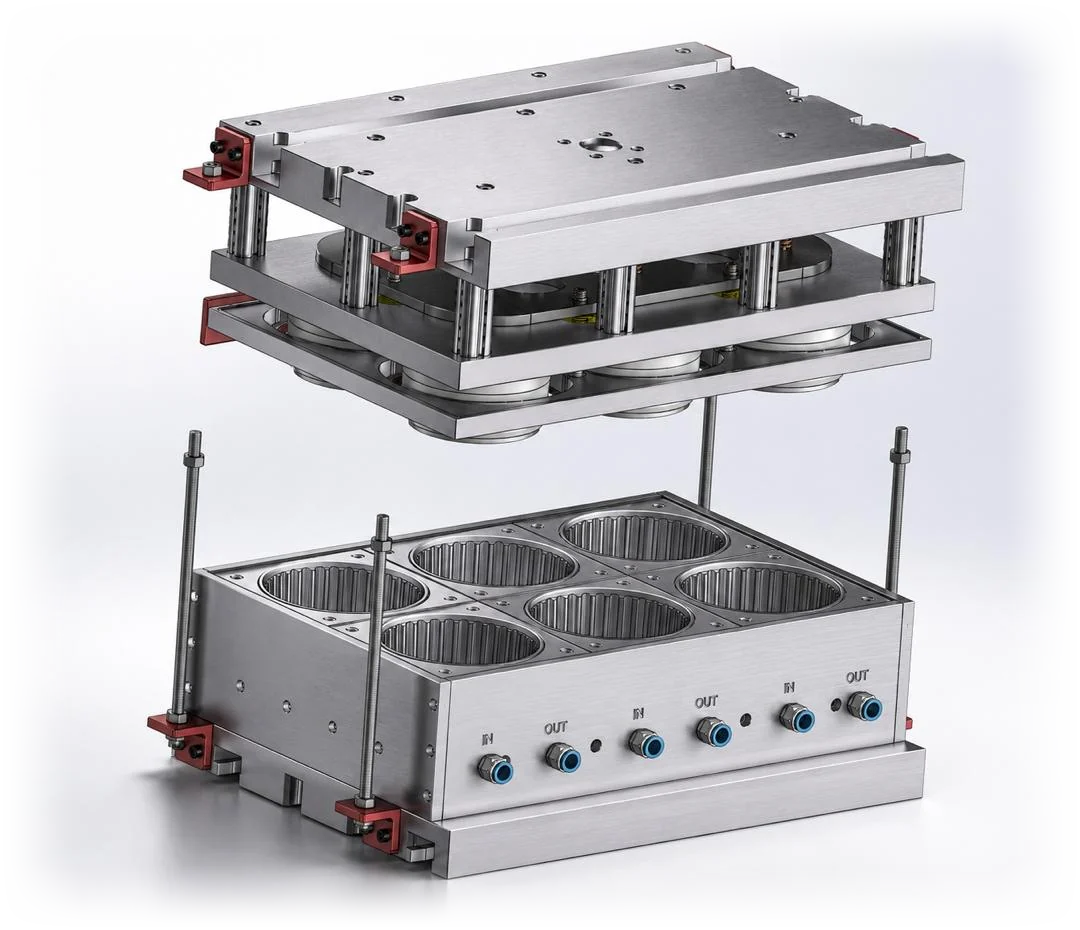

Pressure box with cooling system
The half of the tool that decides how fast the part sets and releases.
05

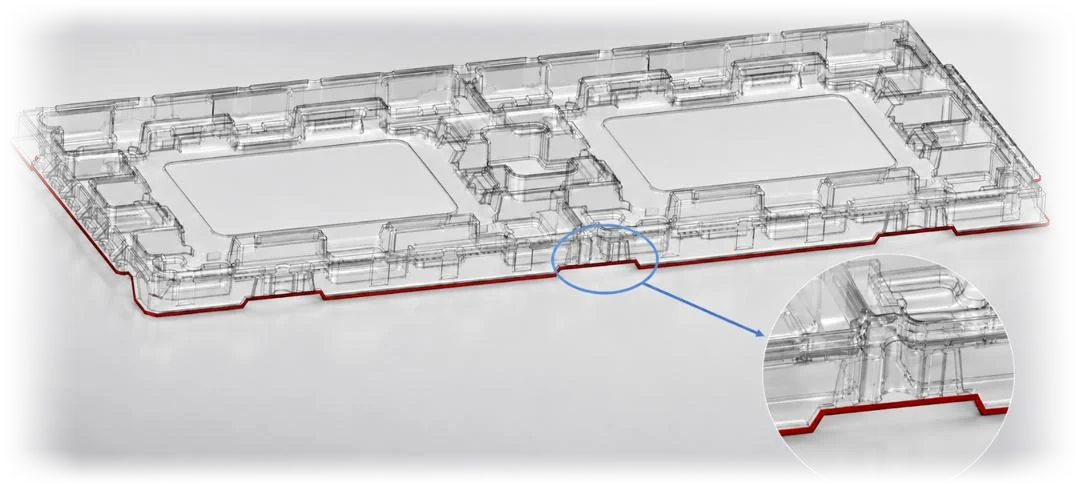

Heavy gauge mold & cutting jig
Thicker sheet and larger parts. The tool stays flat and the jig puts the cut in the same place every time.
06

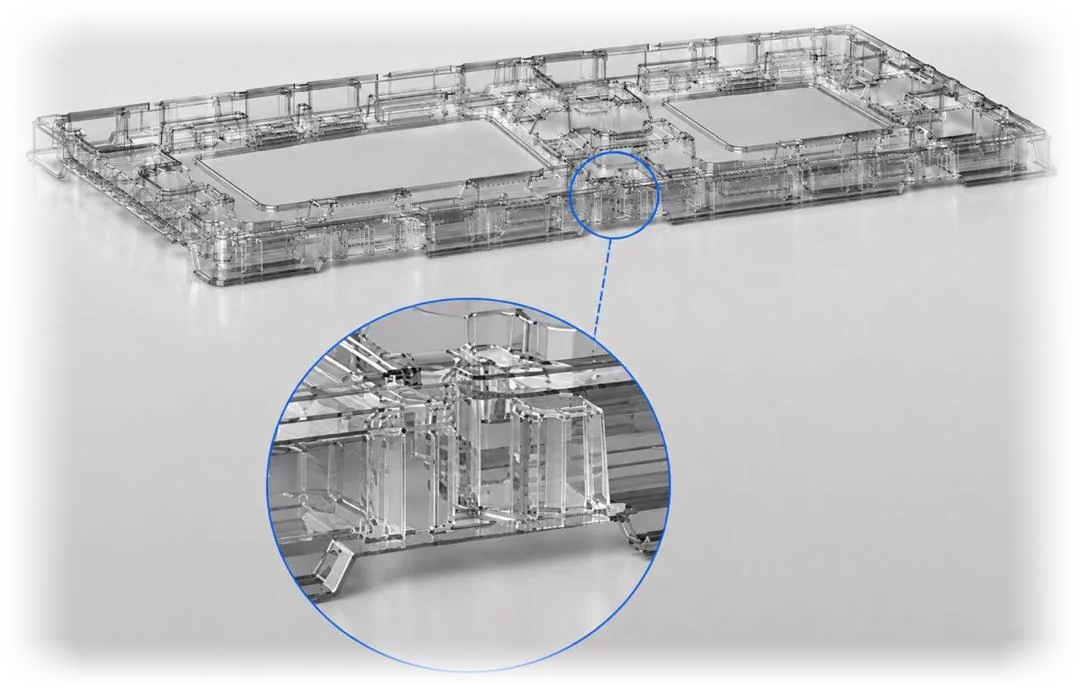

3D punch & die stamping mold
Where the trim line is not flat. Ground to the formed geometry so the cut edge stays clean across the field.

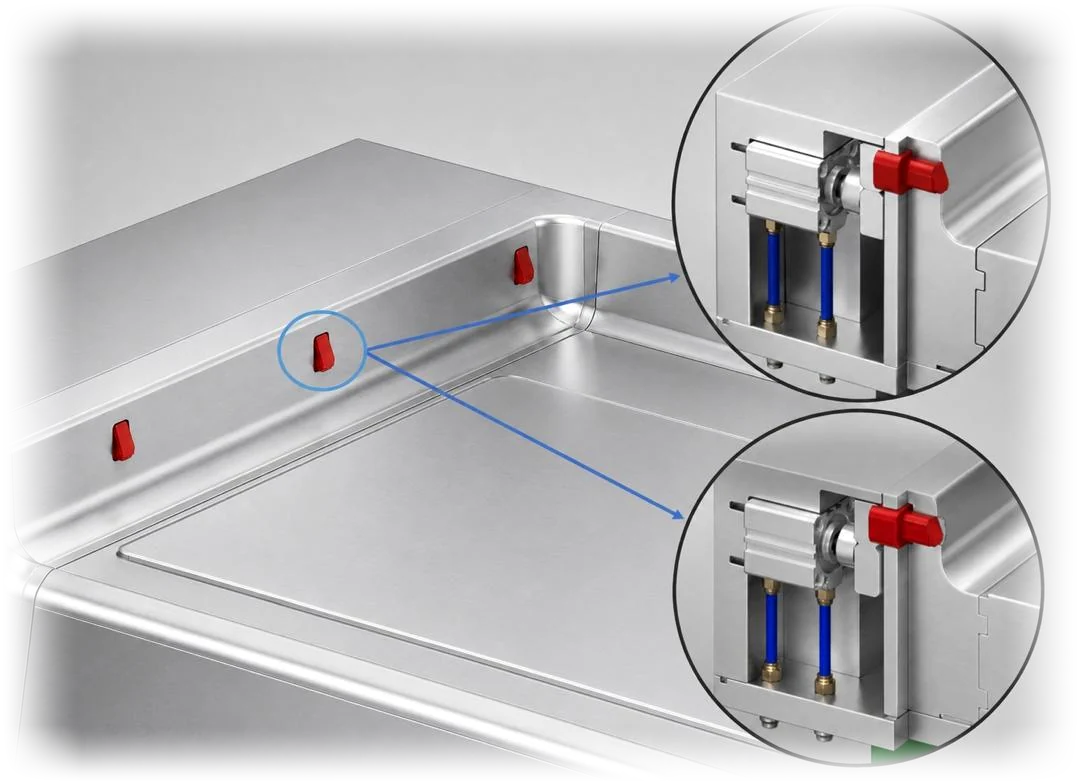

The cooling is drawn with the cavity, not after it.
Cycle time is decided long before the machine runs. Ports, manifold and circuit are laid out together with the cavity field so the part sets evenly and releases cleanly.

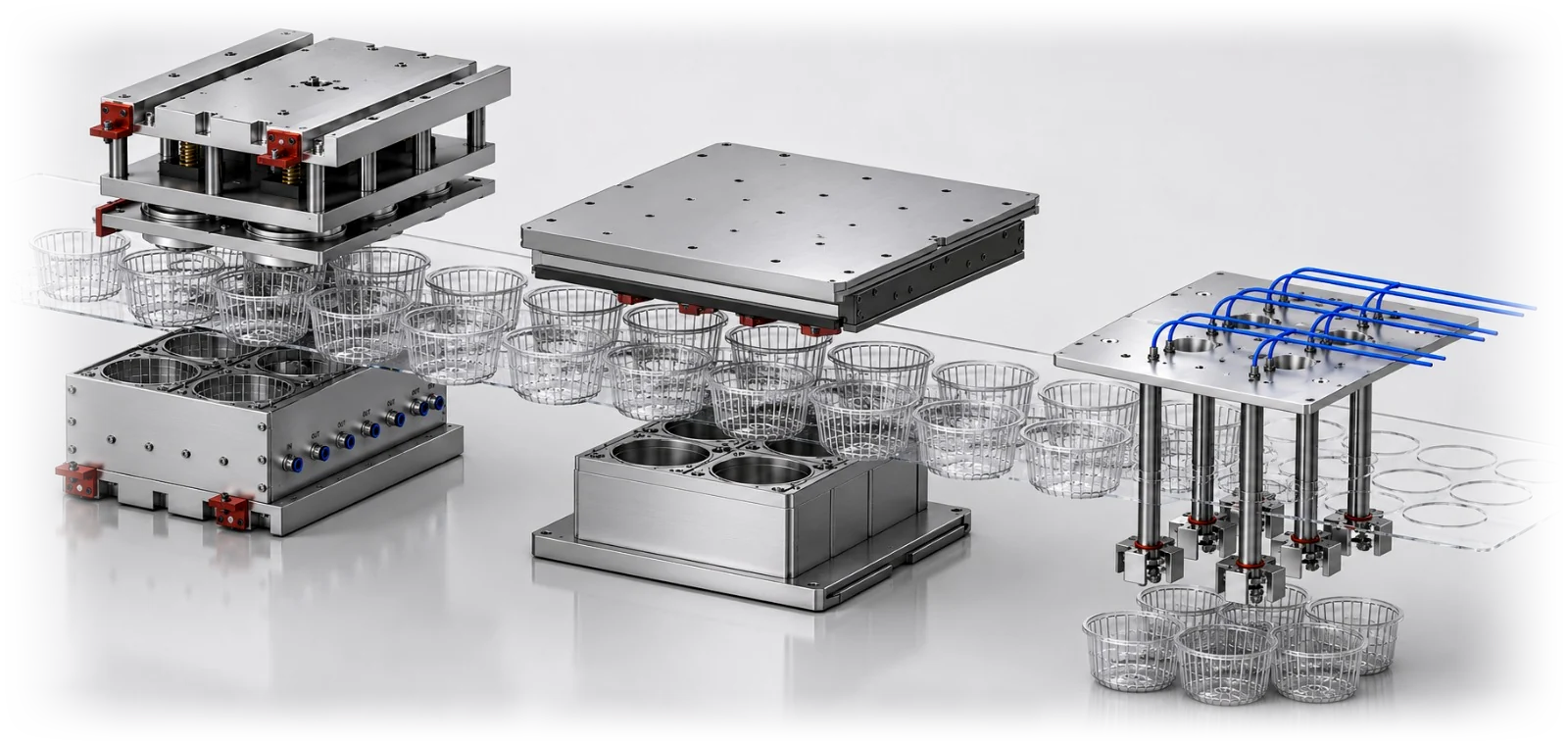

Mold and die-set work covers vacuum forming molds, three and four station thermoforming molds, middle punch, trimming sets and tray stackers.
Machines we build for
Wakitec. Asano. Illig. VFK. Cheng Mei. Meng Xing. We customise the mold to fit your machine and your product.
No matter what you are looking for.
Yong Heng has the custom tooling expertise and professional knowledge to help you find the best thermoformed mold solution.
Start an enquiry
